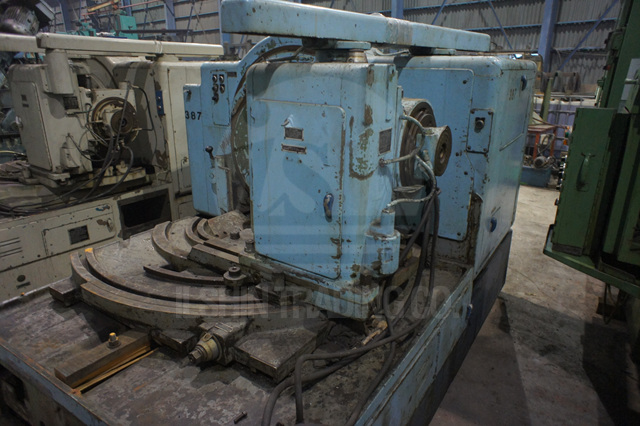

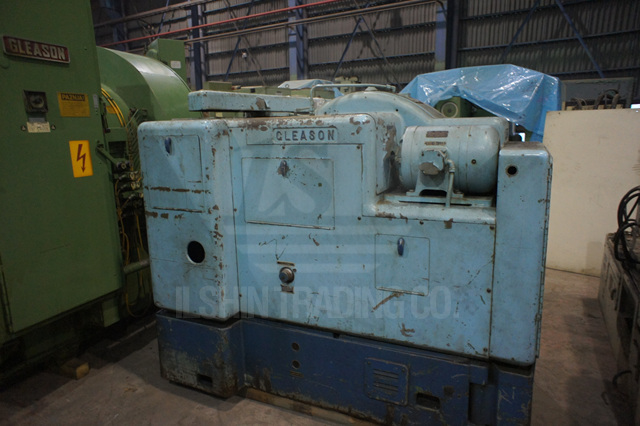

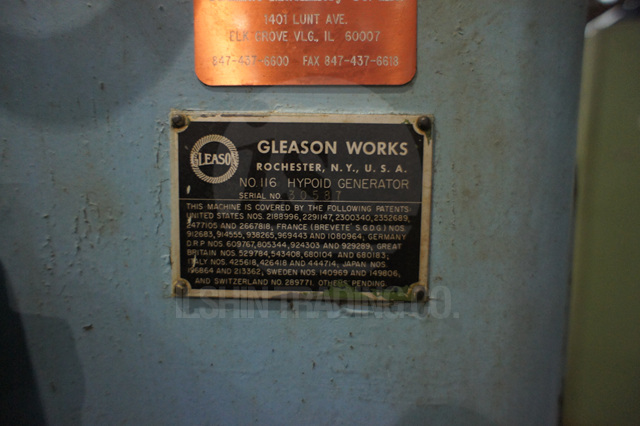

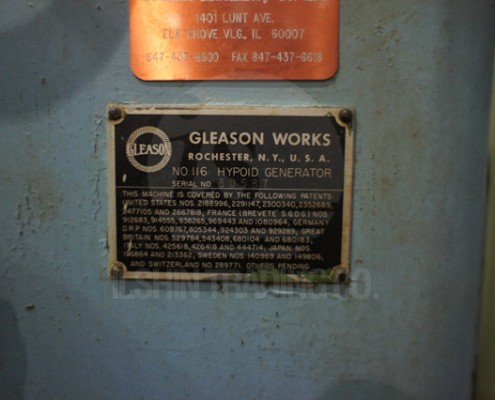

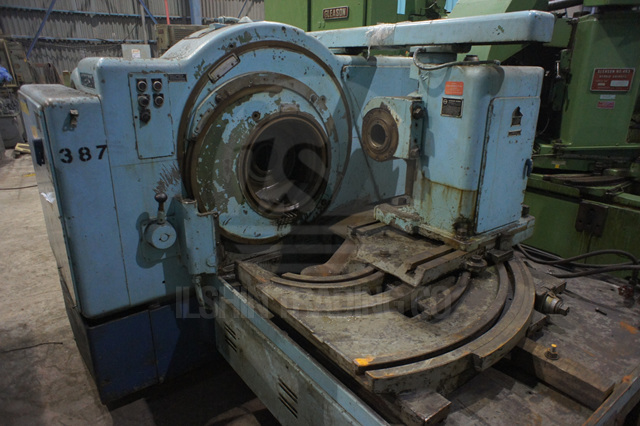

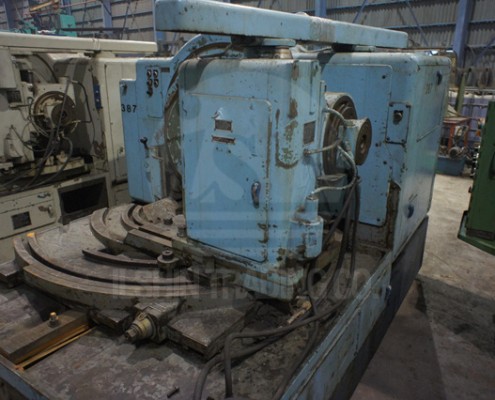

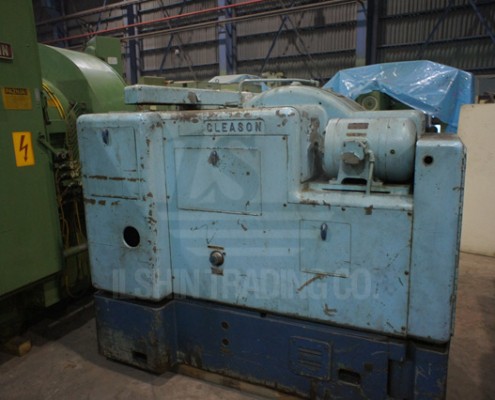

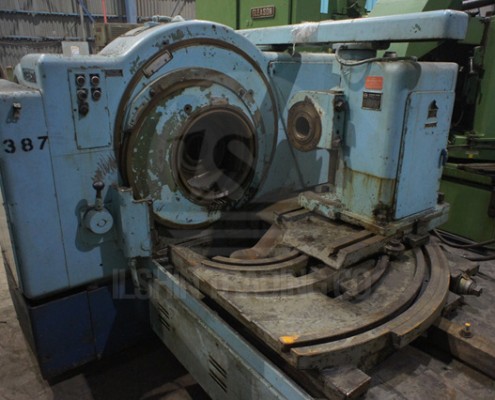

Specification

• CAPACITY
  Max cone distance (30 degree angle and 300 mm cutter): 228 m
  Max extreme ratio: 10 to 1
  Max gear pitch diameter (30 degree spiral angle):
  -Ratio 10 to 1: 457 mm
  -Ratio 2 to 1: 406 mm
  -Ratio 1 to 1: 323 mm
  Diametral pitch (coarsest): 12,7 mod.
  Max full depth: 25,4 mm
  Max face width: 69,9 mm
  Number of teeth: 5 to 150

• WORK SPINDLE
  Diameter of taper hole at large end: 100 mm
  Taper per foot: 39/1600 mm
  Depth of taper: 150 mm
  Diameter of spindle nose: 137,5 mm

• CUTTER DIAMETER
  Diameter: 125 mm; 150 mm; 187,5 mm; 225 mm; 300 mm

• WORKHEAD SETTINGS:
  Max offset above center: 112,5 mm
  Max offset bellow center: 112,5 mm
  Distance from machine center to nose of spindle:
  -Max: 337,5 mm
  -Min: 62,5 mm
  SPEEDS AND FEEDS
  Cutter speeds: 20 to 115 rpm
  Feed (seconds per tooth): 9 to 80 seconds
  ELECTRICAL EQUIPMENT
  Voltage: 380 V, 50 Hz
  Feed motor: 5,5 kW
  Hydraulic motor: 3 kW
  Coolant motor: 1,5 kW
  MISCELLANEOUS
  Floor space: 2560×1980 mm
  Height: 1620 mm
  Net weight: 10977 kg
  Shipping weight (boxed for export): 11930 kg
  Size of case: 3040x2760x1950 mm
