Specification

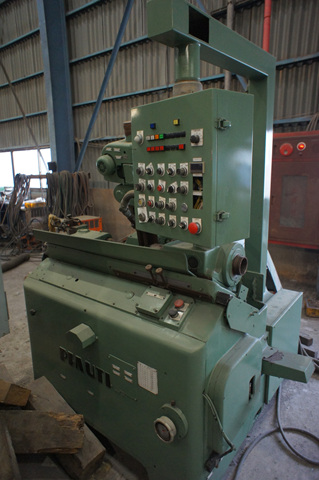

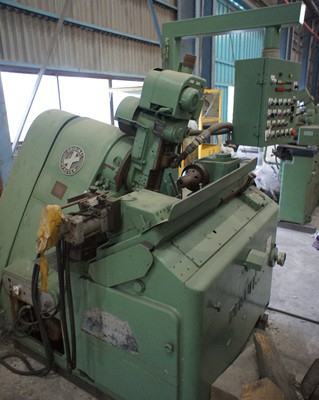

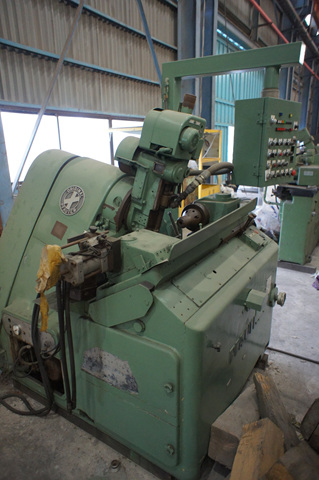

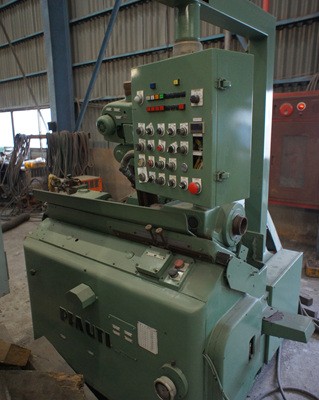

HORIZOLTAL HOBBING MACHINE

max. wheel diameter 160,175 mm
gear width 355 mm
max. module 4,5
spindle bore 75 mm
centre distance 410 mm
min. number of teeth 2, 3
cutter diameter max. 115 mm
cutter length max. 105 mm
axis distance between cutter and workpiece – max. 138 mm
axis distance between cutter and workpiece – min. 30 mm
milling head -swivable 120 °
milling spindle speeds 70 – 400 U/min
axial-feeds 0,25 – 4,0 mm/U
radial feeds 0,09 – 1,5 mm/U
total power requirement ca. 9,5 kW
weight of the machine ca. 3,5 t
dimensions of the machine ca. 1730x1400x1440 mm
